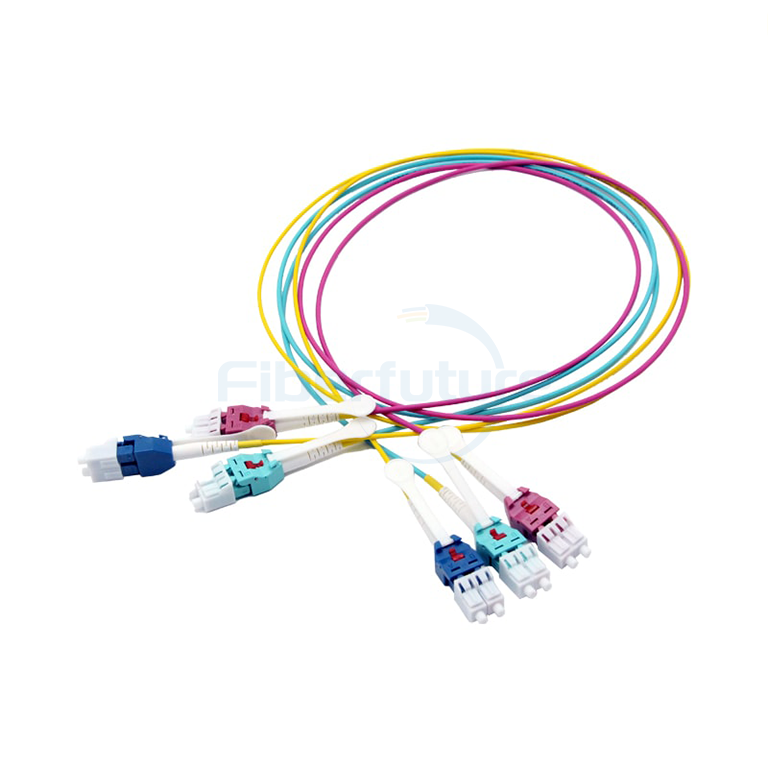

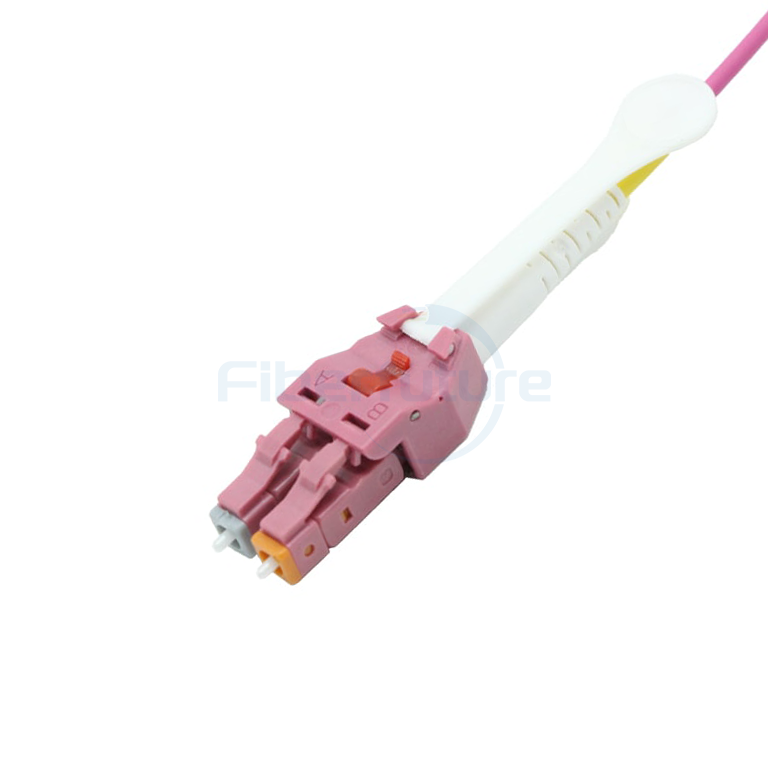

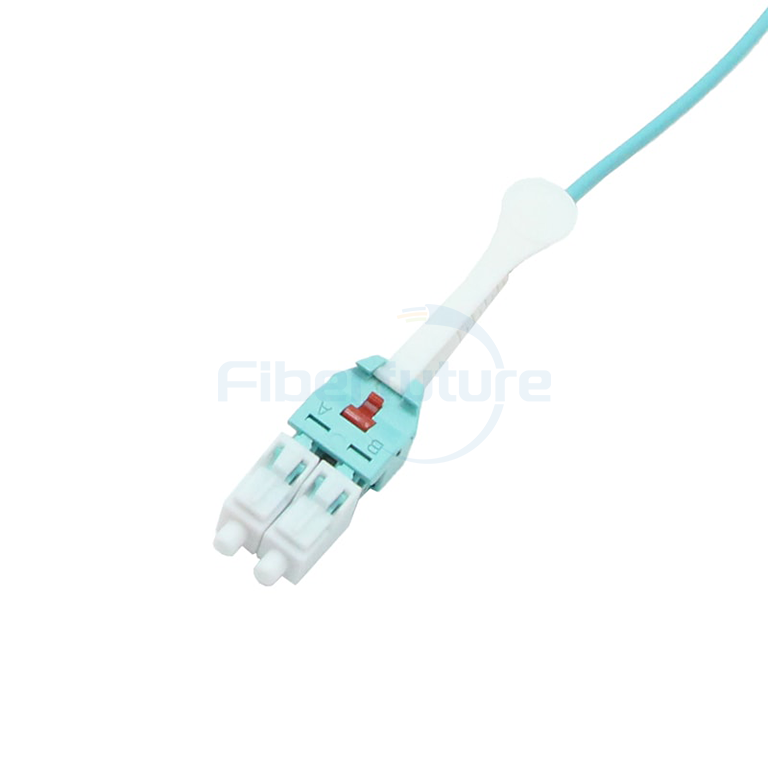

FIBERFUTURE Polarity switchable Uniboot LC connector with pull tap is a uniquely designed, tool-free polarity switching connector, boasting Chinese intellectual property. Its easy-to-grip pull tap simplifies removal from LC adapters, enhancing installation efficiency. Using a "round duplex" cable, it supports dual transmission in a compact 2mm profile, available in LSZH, Plenum, and Riser materials. This patch cable reduces cable management space by up to 68% compared to standard cables, improving airflow and equipment visibility in dense networks.
| Fiber Connector | Pull Tab Uniboot LC to Pull Tab Uniboot LC | Fiber Type | SM: Yellow/Blue/White
OM1 & OM2: Orange OM3: Aqua OM4: Aqua/Violet/ Magenta |
| Cable OD & Jacket | 1.6mm/1.7mm/1.8mm/2.0mm PVC/LSZH | Fiber Counts | 2 Fibers |
| Insertion Loss | ≤0.3dB (IEC Grade C)
≤0.12dB (IEC Grade B) |
Return Loss | SM UPC ≥ 50dB(min)
SM APC ≥ 60dB(min) MM PC ≥ 35dB(min) |
| Pull-out Force | 100N | Durability | 500 Cycles |
| AB Polarity Switchable | Available | Operating Temperature | -40 to + 85°C |
| Overall Length (L) (m) | Length of Tolerance (cm) |
| 0＜L＜1 | +5/-0 |
| 1＜L＜10 | +10/-0 |
| 10＜L＜40 | +15/-0 |
| 40＜L | +0.5%L/-0 |
