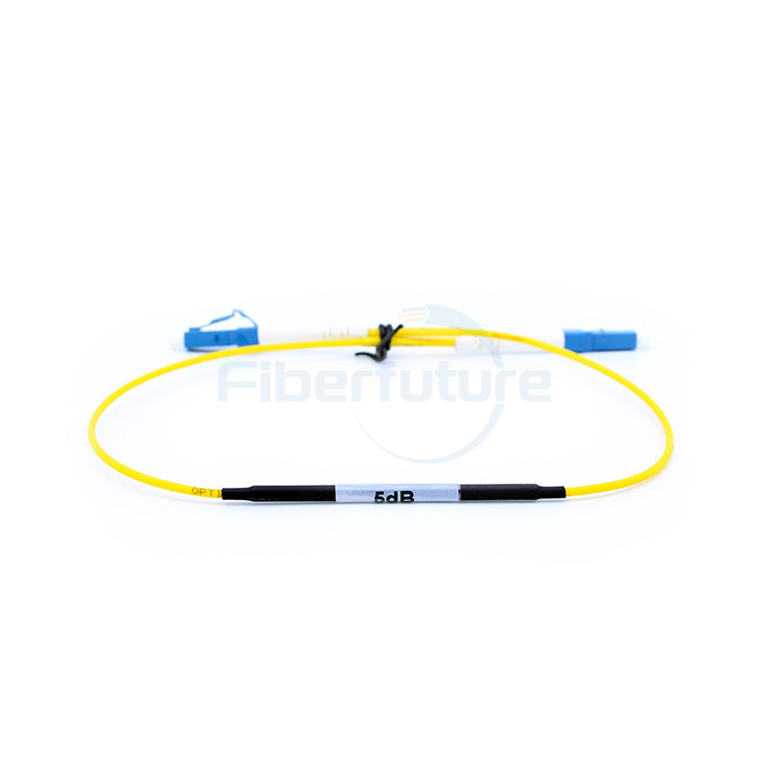

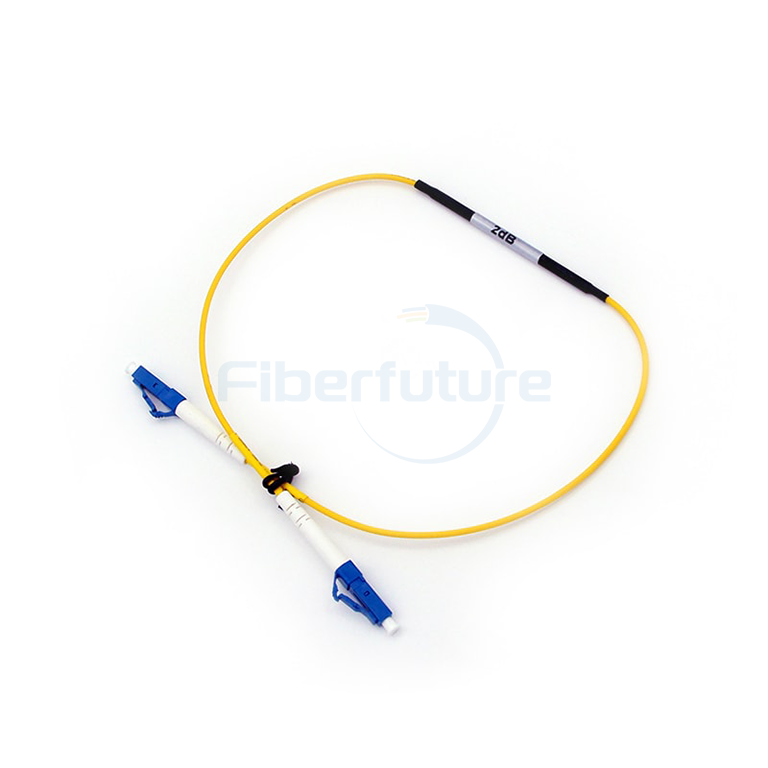

FIBERFUTURE patch cord in-line fixed attenuators provide precise control of optical signals for integrated and add-on applications. They limit the light passing through to exact levels required by specific projects or needs, ensuring highly accurate performance.
| Items | Parameters | |
| Operating Bandwidth | SM | MM |
| 1310/1550nm | 850nm | |
| Insertion Loss | <0.20db | <0.35db |
| Return Loss | UPC≥50db, APC≥60db | PC≥35db |
| Connectors | SC, FC, LC, ST | |
| Attenuation Tolerance | 1～10db ≤0.5db; 11～30db≤1dB. | |
| Vibration | ≤0.1db Change Between 10～55hz (2hr) | |
| Cable Option | 2mm, 0.9mm, 3.0mm Cable etc | |
| Max Optical Input Power | 200mw | |
| Operating Temp | – 40°C to +85°C (≤0.2db Insertion Loss) | |
