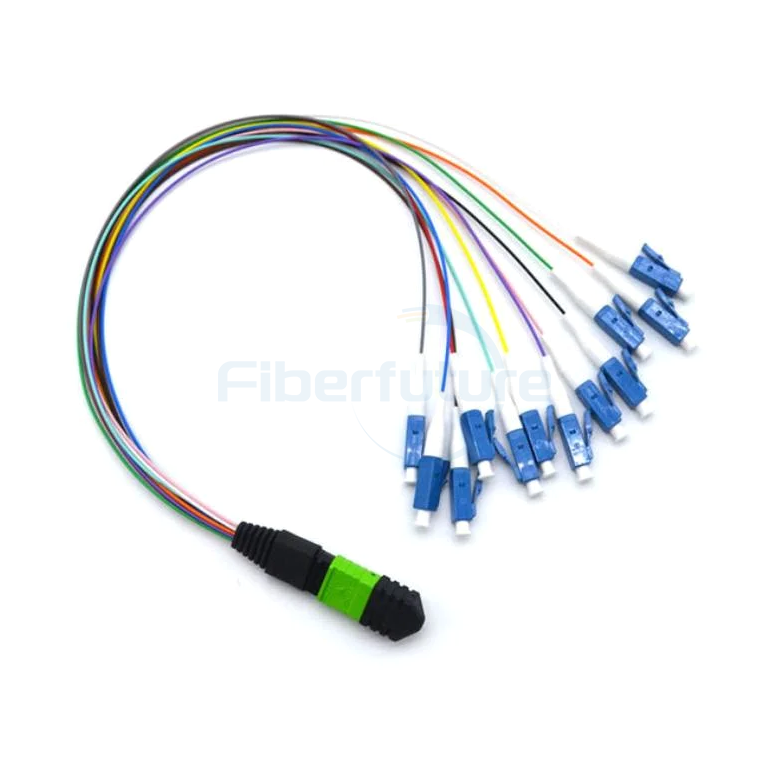

MPO-LC 12 Fiber 0.9mm Fanout Cable OM3 OM4

FIBERFUTURE MPO-LC 12 fiber 0.9mm fanout cable, available in OM3 and OM4 grades, offers high-speed connectivity for data center applications. This compact cable solution facilitates easy transition from MPO to individual LC connectors, ensuring reliable performance and efficient space utilization in high-density network environments.

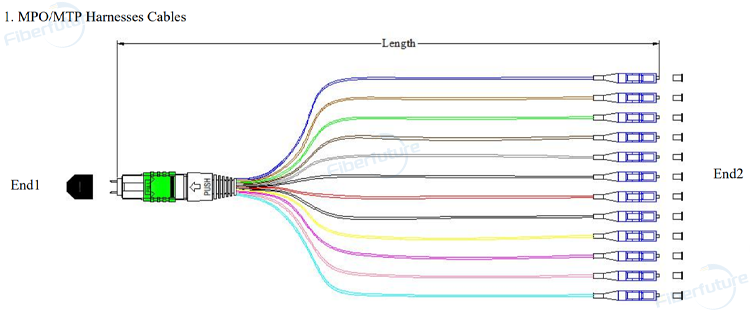

Dimensional Diagram

MPO-LC 12 Fiber 0.9mm Fanout Cable OM3 OM4

Applications

1. Network Connectivity: Integral for robust data transmission in enterprise and wide area networks.
2. Optical Distribution: Crucial for last-mile connectivity in fiber-to-the-home and fiber-to-the-premises deployments.
3. Data Storage Solutions: Essential for high-speed data transfer in storage area networks utilizing fiber channel technology.
4. Space-Conscious Designs: Perfect for densely packed data centers and server rooms where efficient use of space is paramount.

Features

1. Factory-Verified Quality: Every cable is fully terminated and rigorously tested to assure superior transfer performance right out of the box.
2. Versatile Jacket Options: Choose from LSZH, OFNR, or OFNP jacket materials to meet specific safety and environmental requirements.
3. Cost-Effective Mass Termination: Offers an economical approach to terminating multiple fibers simultaneously without compromising on quality.
4. Optimized for Various Applications: Engineered for both low-loss and standard-loss single-mode and multimode installations, ensuring reliable performance across different network setups.
5. Durable Cable Variants: Available in ruggedized round, oval, and bare ribbon configurations to withstand demanding installation conditions and environments.
6. Consistent Reliability: Designed with high repeatability and exchangeability in mind, ensuring consistent performance across multiple deployments and easy maintenance.

Jumper Tolerance Requirement

Overall length (L) (M) Length of tolerance (CM)
0L20 +10/-0
20L40  +15/-0
L40  +0.5%L/-0

MPO&MTP Optical Characteristics

Item Parameter Reference
Single mode Multimode
Standard Elite Standard Elite
Insertion loss Typical≤0.30dB Max≤0.75dB Typical≤0.15dB Max≤0.35dB Typical≤0.50dB Max≤0.25dB Typical≤0.10dB Max≤0.35dB IEC61300-3-34
Return loss ≥50dB (PC) ≥60dB (APC) ≥55dB (PC) ≥65dB (APC) ≥30dB (PC) ≥30dB (PC) IEC61300-3-6

LC/SC/FC/ST Optical Characteristics

Item Parameter Reference
Single mode Multimode
Insertion loss Typical value≤0.15dB; Maximum≤0.30 Typical value≤0.15dB; Maximum≤0.30 IEC 61300-3-34
Return loss ≥ 60dB (APC) ≥30dB (UPC) IEC 61300-3-6
≥ 50dB (UPC)
