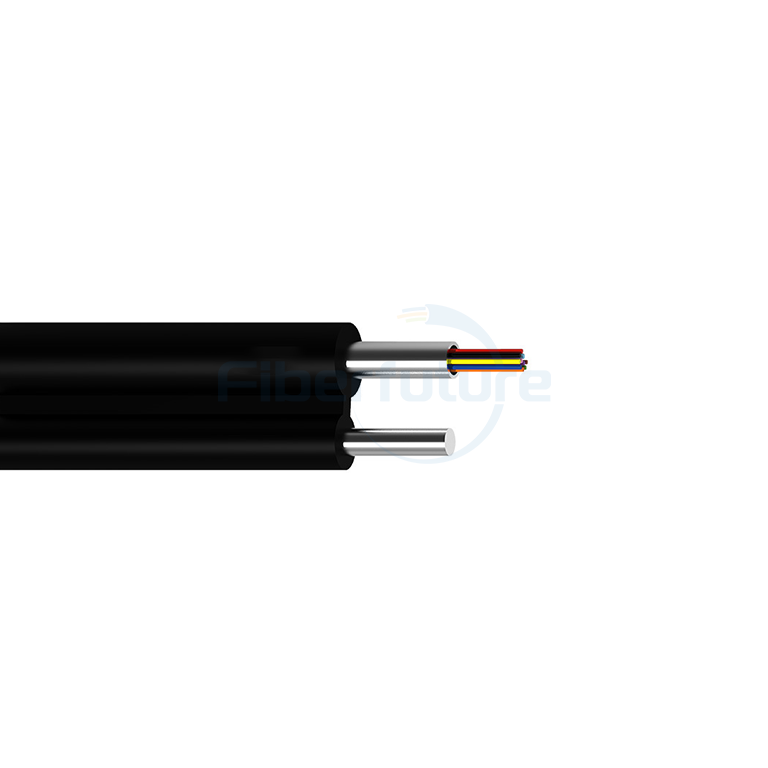

Mini Figure 8 Cable with Stainless Steel Loose Tube

Mini figure 8 cable features a compact, lightweight design with up to 24 cores. It is available with LSZH, PE, or PA jackets, offering excellent mechanical performance and a wide temperature range. Suitable for indoor, pipeline, and ground slot installations, it can endure significant pressure.


APPLICATIONS
aerial direct-burriet uv-resistant
Fiber Count

Construction

Single-mode or multimode optical fiber

Up to 24 cores

LSZH, PE, or PA jacketing

Features

  • Small, lightweight design

  • Excellent mechanical performance, resistant to tensile force, pressure, and super pressure

  • Waterproof, moisture-proof, anti-rodent, and rust-free

  • Resistant to acid, alkali, and salt corrosion

  • Non-toxic, flame-retardant, fire, and explosion-proof

  • Outstanding high and low-temperature performance

  • Maintains communication for over 2 hours at 800°C in fire conditions with normal optical fiber

Applications

  • Indoor cabling

  • Pipeline installation

  • Ground slot laying

  • Temperature sensing

  • Fire monitoring

Technical Parameters

Operating temperature: -60~+80℃
Storage temperature: -60~+80℃

  • Min. bending radius static=10D
  • Min. bending radius dynamic=20D
