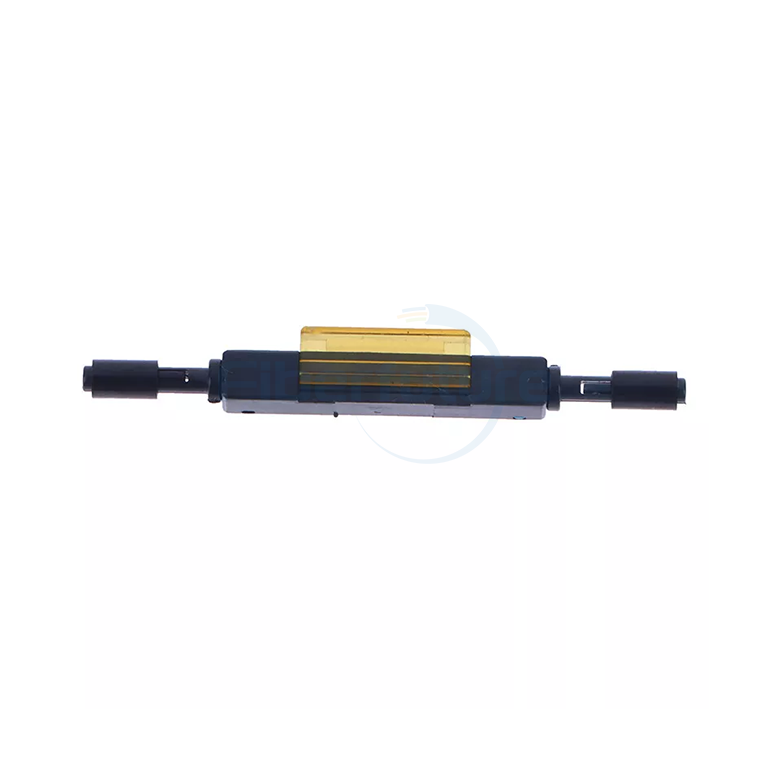

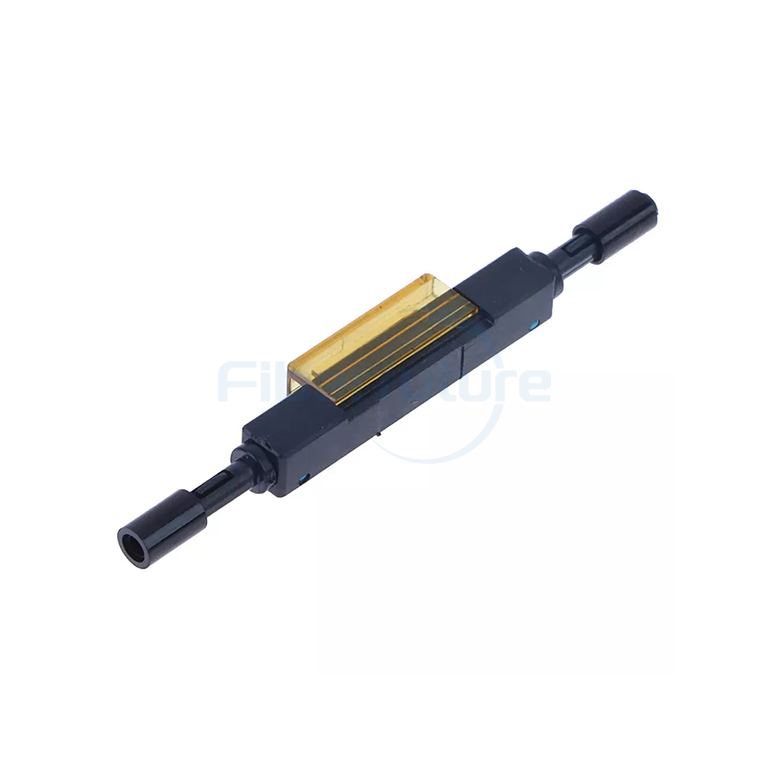

FIBERFUTURE IP65 waterproof fiber optic mechanical splice is designed for FTTH access, providing durable, quick-connect splicing. It features a robust, watertight design that ensures reliable performance and protection in outdoor environments.
| Item | Parameter |
| Cable Scope | 2*3.0mm butterfly cable, 2*5.0mm butterfly cable |
| Device Length | About 96.5 mm |
| Fiber Diameter | 125μm |
| Coating Diameter | 250μm |
| Fiber Type | G657A1 |
| Insertion Loss | Max: 0.2dB (Typical: 0.1dB at 1310nm to 1550nm) |
| Return Loss | ≤-45dB |
| Success Rate | >98% |
| Reusable Times | >5 times |
| Tighten Strength | >3N; IL change ≤0.2dB (Test time: 2 minutes) |
| Cable Hold Force | ≥40N, loss≤0.2dB (Test time: 2 minutes) |
| Working Temp. | -10°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Drop Test | IL change ≤ 0.3 dB (4 m concrete floor, once each direction, three times total) |
| Waterproof Grade | IP65 |
