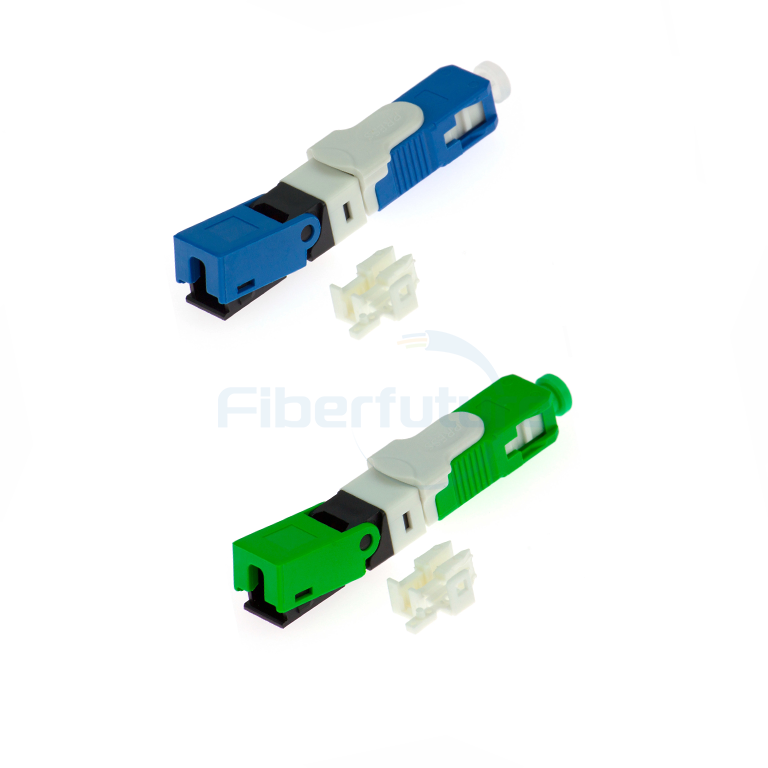

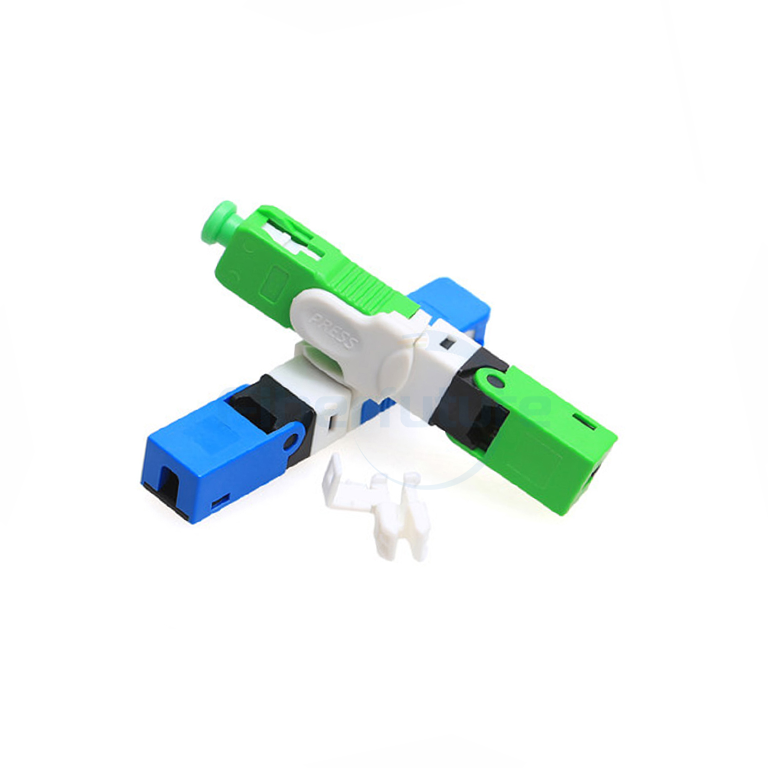

Green Blue SC Fast Connector Field Assembly

Green Blue ESC250 SC Fast Connector Field Assembly Optical Connector

FIBERFUTURE green blue SC fast connector is a compact, field-assembleable solution for 2.0x3.0mm optical cables. It features a durable plastic shell, ceramic zirconia ferrule, and a clamp for secure cable holding. Easy to assemble and disassemble, it meets Telcordia GR-326 and IEC 61754 standards, with a bright funnel-shaped guide hole for simple installation.

Send Email

Applications

Used to open the FTTH fiber terminal end.
Ideal for installation in boxes and cabinets, such as wiring into distribution boxes.
Enables quick repair or replacement of damaged fibers behind panels.
Suitable for maintenance tasks in Local Area Networks (LANs) and Wide Area Networks (WANs).
Supports data and video transmission in network infrastructure.
Facilitates the construction and maintenance of fiber end-user access points.
Essential for the optical fiber access of mobile base stations.

Features

Compact Design: Ideal for 2.0x3.0mm optical cables.
Bend Radius: Compatible with ATB/Splitter boxes, supporting a minimum bend radius of 30mm.
High-Quality Shell: Made from durable engineering plastic with a smooth finish and permanent manufacturer's information.
Ceramic Zirconia Ferrule: Ensures reliable performance.
Secure Clamp: Holds the cable firmly in place.
Easy Assembly: Includes necessary tools for quick setup.
Release Tool: Facilitates easy disassembly.
Testing Standards: Compliant with Telcordia GR-326-Core and IEC 61754.
Singlemode APC Connector Specifications:
- Radius of Curvature: 5-12mm
- Apex Offset: <50um
- Fiber Height: -100 to +100nm
- APC Angle: 7.5 to 8.5 degrees
Singlemode UPC Connector Specifications:
- Radius of Curvature: 5-25mm
- Radius of Curvature <50um
- Fiber Height: -100 to +100nm
Standard Compliance: Meets TIA/EIA 604-3 (SC) standards.
Lid Locking Mechanism: Secures the cable with a foldable operation.
Bright Cable Guide Hole: Funnel-shaped for easy alignment during installation.
V-Groove Design: Simplifies fiber placement into the connector.

Specifications

Specification	Value
Type	SC/APC or SC/UPC
Insertion Loss (IL)	≤0.3dB
Return Loss (UPC)	≥45dB
Return Loss (APC)	≥50dB
Insertion Loss Change after 500 Plugs	≤0.2dB
Size	52x6mm
Coating Diameter	250μm
Type Cable	2.0 x 3.0mm ±0.2
Insert Time	>500 times
Number of Reuses	≥5 times
Online Tensile Strength Test	≥20N
Humidity	<95%RH
Operating Temperature Range	-10°C to - + 65°C
Warranty	≥12 months
