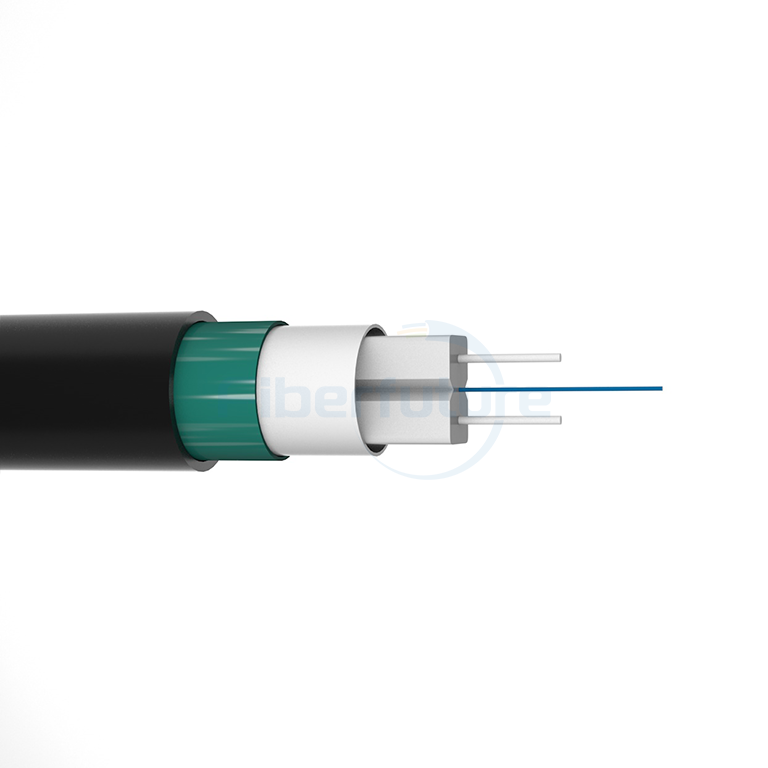

GJYXFH03 Duct Bow-type FTTH Drop Cable with Steel Tape and HDPE Sheath

FIBERFUTURE GJYXFH03 duct bow-type FTTH drop cable is designed for robust outdoor fiber optic connectivity, featuring a steel tape for added protection against physical damage and an HDPE (High-Density Polyethylene) sheath providing excellent UV resistance and durability. This cable is ideal for aerial or duct installations, ensuring reliable performance in various environmental conditions. Its bow-type design facilitates easy handling and quick deployment.

APPLICATIONS
indoor-note outdoor aerial self-supporting direct-burriet e e e
Fiber Count
Fiber Type
GJYXFH03 Duct Bow-type FTTH Drop Cable with Steel Tape and HDPE Sheath
GJYXFH03 Duct Bow-type FTTH Drop Cable with Steel Tape and HDPE Sheath
Send Email
Whatsapp

Main Features

  • Robust steel tape for enhanced physical protection
  • HDPE sheath offers superior UV resistance and durability
  • Bow-type design for easy handling and rapid deployment
  • Suitable for aerial or duct installation methods
  • Designed for reliable outdoor FTTH (Fiber To The Home) applications

Applications

  • Aerial installations between poles
  • Direct burial applications due to durable sheath
  • Indoor and outdoor use for FTTH connections
  • Suitable for duct installation in pre-existing conduits
  • Providing last-mile broadband access to residences

Optical Characteristics

Fiber Type

Maximum Attenuation for Uncabled Fibers
     [dB/km]

1310 nm

1383 nm

1490 nm

1550 nm

1625 nm

G.657A1

Bend insensitive fiber fully compatible with G.652D standard, bend radius 10-15mm

≤0.35

≤0.35

≤0.24

≤0.20

≤0.23

G.657A2

Bend insensitive fiber fully compatible with G.652D standard, bend radius 7.5mm

≤0.35

≤0.35

≤0.24

≤0.20

≤0.23

G.657B3

Bend insensitive fiber fully compatible with G.652D standard, bend radius 5mm

≤0.35

≤0.35

≤0.24

≤0.20

≤0.23

Environmental Characteristics

Operating :-20℃ to 60℃
Storage :-20℃ to 60℃

Technical Parameter

Cable Type

Cable Diameter

(MM)

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100MM

Bending Radius

Static/Dynamic

MM
GJYXFH03-1FO 6.5 400 600 300 1000 10D 20D
GJYXFH03-2FO 6.5 400 600 300 1000 10D 20D
GJYXFH03-4FO 6.5 400 600 300 1000 10D 20D

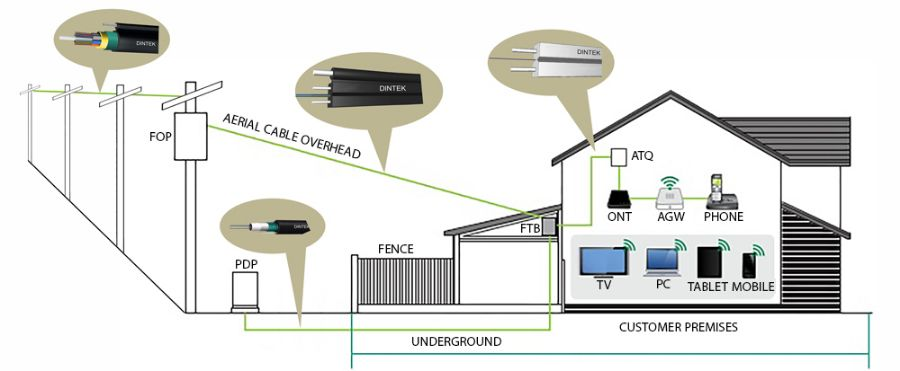

FTTx Network Cabling Used



ftth-self-supporting-bow-type-drop-cable-with-7-stranded-steel-wire

Delivery Length

Standard length: 1000m; Other length available

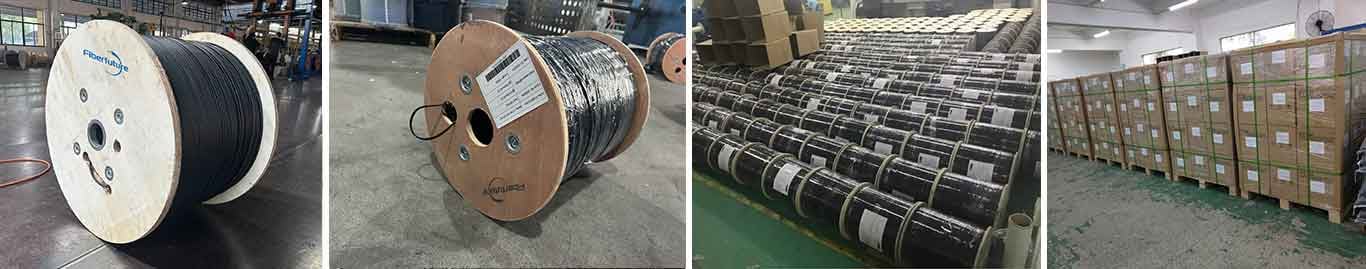

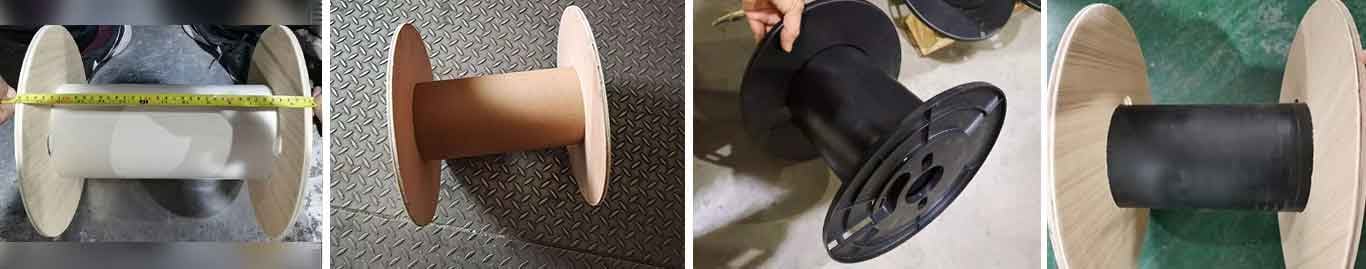

Fiber Drop Cable Factory & Equipment

TPU Round Drop Cable GJFJU



TPU Round Drop Cable GJFJU
