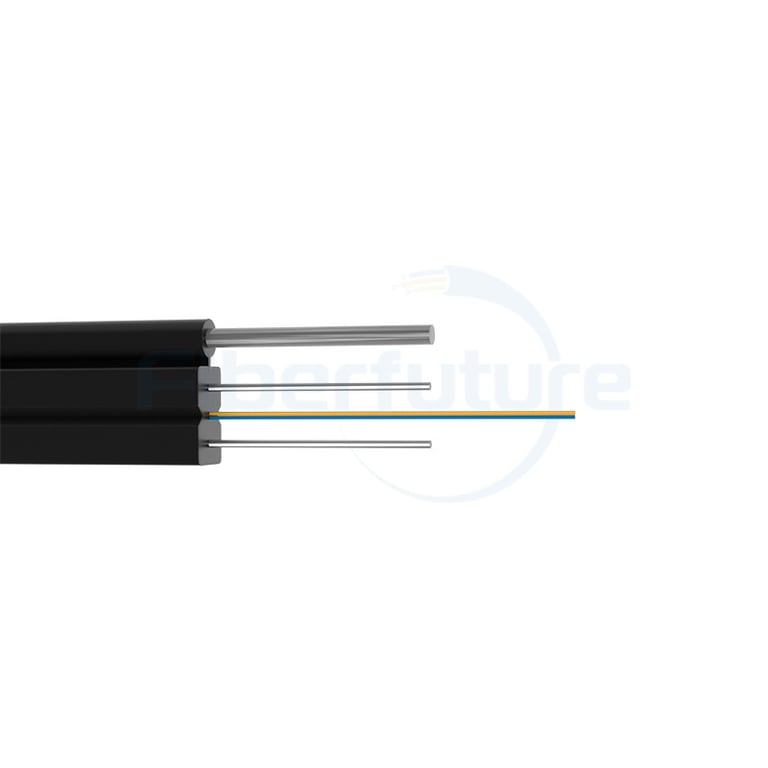

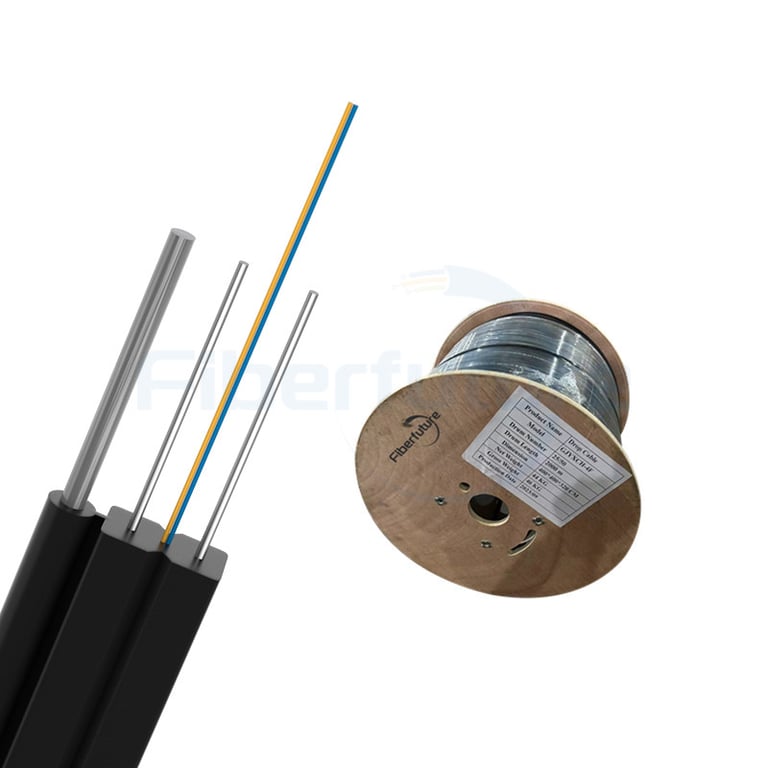

1-12 Core Aerial Self-Support FTTH Drop Cable (GJYXCH) is a high-quality FTTH solution designed for reliable and efficient aerial fiber optic installations. This cable provides a self-supporting design for ease of installation and is specifically engineered to deliver excellent performance in demanding outdoor environments.
| Fiber Count | |
|---|---|
| Fiber Type |

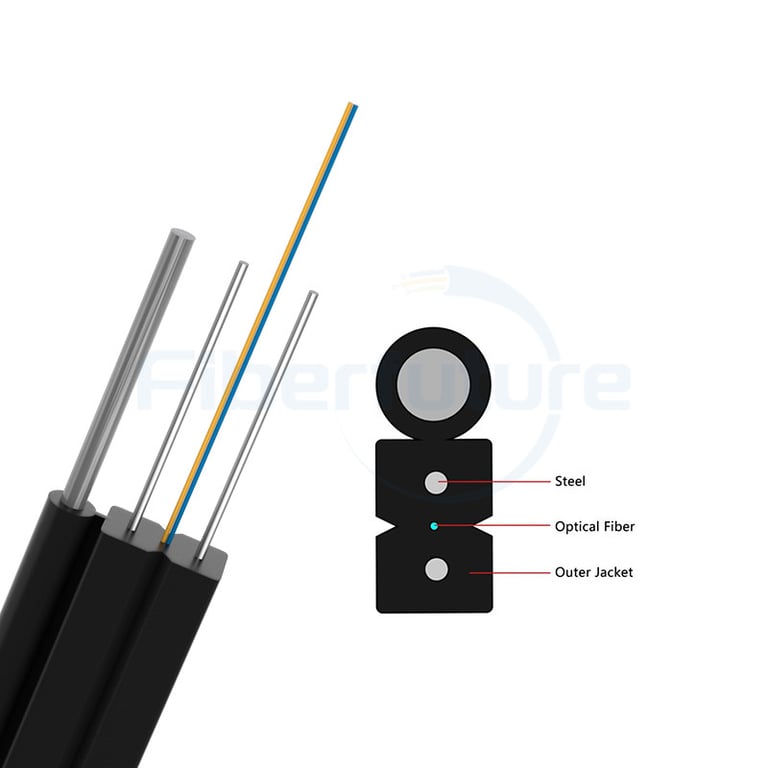

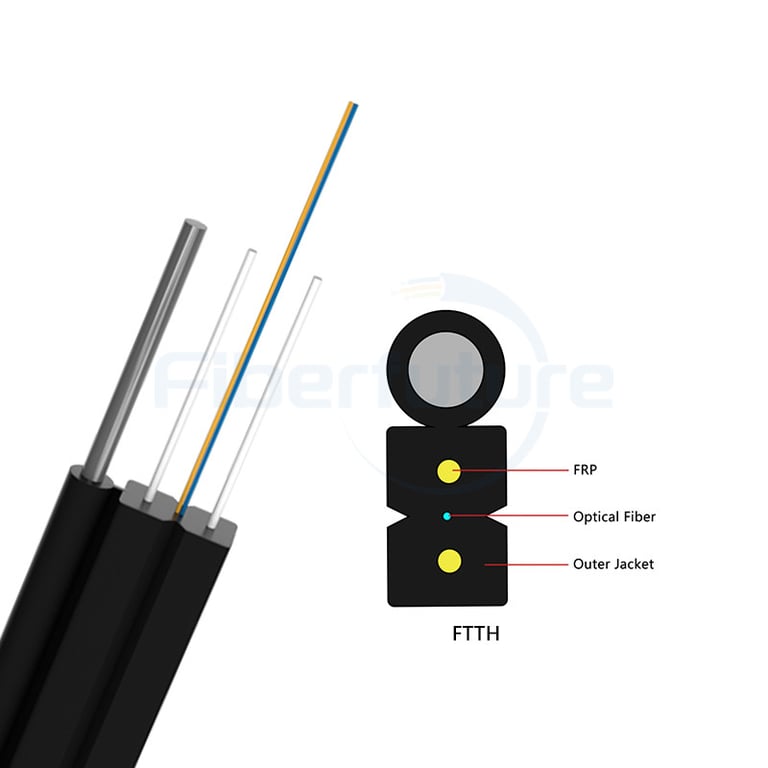

The typical GJYXFCH / GJYXCH Self-supporting drop optical cable
includes central optical fibre(s) with 2 parallel FRP/Steel wires as the strength members placed on both sides,and an additional strength member(steel wire),Finally a LSZH sheath is extruded outside.
Simple structure, light weight, high tensile strength and metal-free
Novel groove design, easily strip and splice, simplified installation and maintenance
Low smoke, zero halogen and flame retardant sheath, environment-friendly, good safety
Transport/storage temperature: -20℃~70℃
|
Type |
Diameter |
Weight |
Tensile strength |
Crush |
Bending Radius |
||||||||||||||||||||
|
GJYXFCH-1-2 |
2.0*5.2 |
18.9 |
300/600 |
1000/2200 |
15/30 |
||||||||||||||||||||
|
GJYXCH-1-2 |
2.0*5.2 |
21 |
300/600 |
1000/2200 |
15/30 |
||||||||||||||||||||
Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.
| Loading quantity suggestion | ||
| 20'GP container | 1KM/roll | 600KM |
| 2KM/roll | 650KM | |
| 40'HQ container | 1KM/roll | 1100KM |
| 2KM/roll | 1300KM | |
*The above is just a suggestion for container loading, please consult our sales department for the specific quantity
