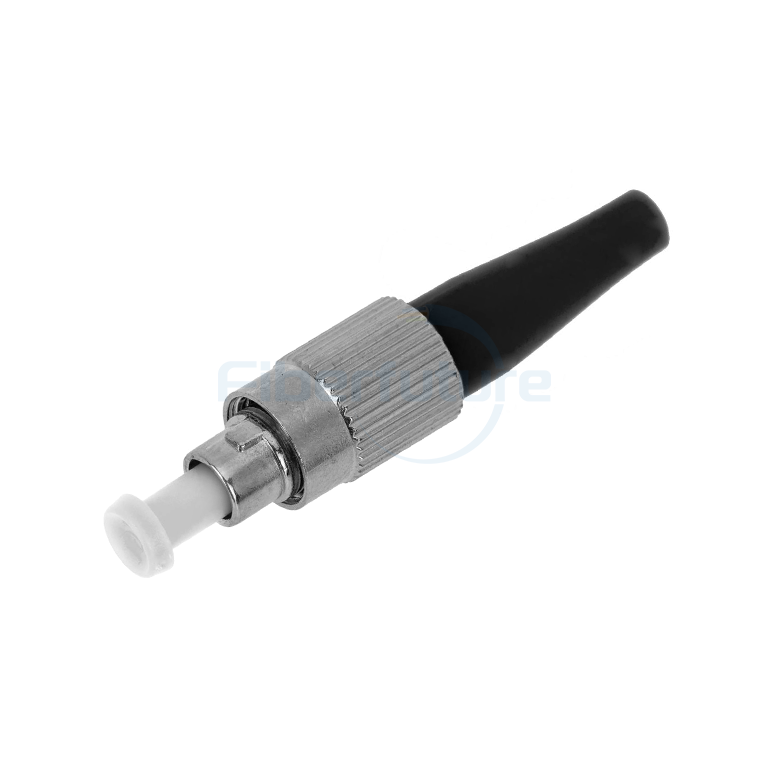

FIBERFUTURE FC/UPC SM field assembly fast connector is a fast connector for field installation of single-mode fiber networks. It uses pre-polished pin technology to ensure stable and reliable optical performance, suitable for emergency wiring and plug-and-play applications, compatible with SC-type interfaces, easy to operate, and greatly shortens installation time.
Telecommunications and data communication networks.
Local area networks (LAN).
Cable television systems (CATV).
Fiber-to-the-home (FTTH) projects.
High-speed applications such as Gigabit Ethernet, asynchronous transfer mode (ATM), synchronous optical network (SONET).
Fully support modern communication infrastructure with high bandwidth requirements.
Compact design facilitates high-density cabling.
Optimized for 3.0x2.0mm drop cables to ensure a secure connection.
Perfectly compatible with standard FC series connectors, seamlessly integrated into existing systems.
Average insertion loss as low as 0.3 dB, ensuring efficient signal transmission.
Average return loss up to 50 dB for excellent reflection control.
Plastic housing and protective cover made of UL certified materials to ensure safety and durability.
| Applicable connector type | FC/UPC |
| Optical fiber type | SM |
| Test the wavelength | 1310nm~1550nm |
| Insertion loss | Typical value≤0.15, maximum≤0.30 |
| Return Loss | ≥50dB |
| Insert core diameter | ∮2.5mm |
| Insert core parameter | Aperture: 125.5+1/-0μm, Concentricity: ≤1.0μm |
| Durability | 1000 times plug |
| Suitable for optical cable diameter | ∮2.0mm, ∮3.0mm |
| Working temperature | -20℃to+70℃ |
| Storage temperature | -40℃to+85℃ |
