Aerial Outdoor Flat Drop Fiber Optic Cable GYFXTBY

Aerial Outdoor Flat Drop Fiber Optic Cable GYFXTBY

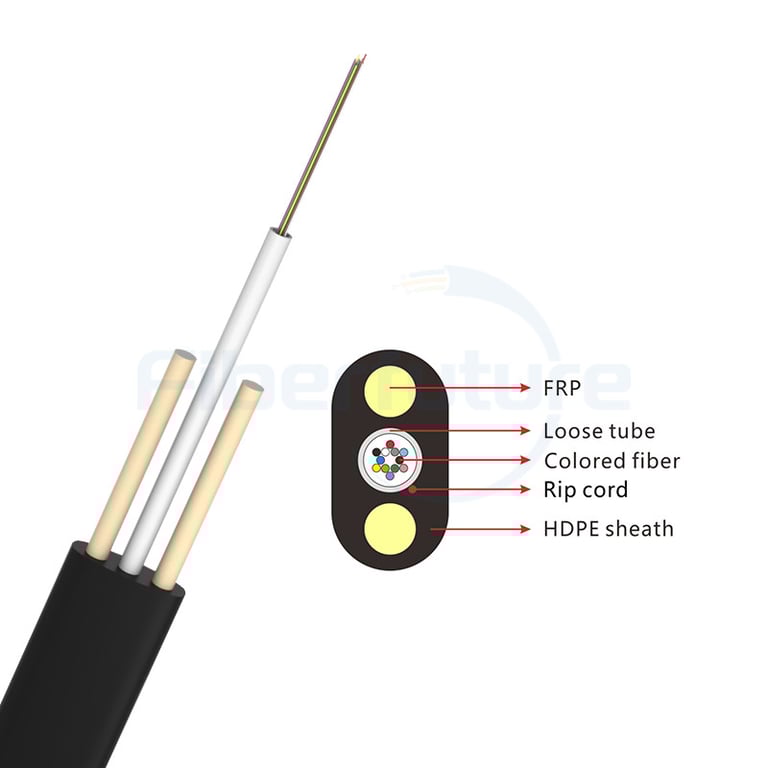

GYFXTBY fiber cable is an arc runway fiber cable, which is made of multiple ( 1 – 12 cores ) 250μm colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, a non-metallic tensile element ( FRP ) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.

APPLICATIONS

Fiber Count
Fiber Type

Send Email

Main Features

Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable ;
PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber ;
Fiber optic cable is non-metallic structure, light weight, easy laying, anti-electromagnetic, lightning protection effect is better ;
Larger number of core than ordinary butterfly-shaped optical cable products, suitable for access to more densely populated villages ;
Compared with butterfly-shaped optical cable, runway structure products have stable optical transmission performance with no risk of water accumulation, icing and egg cocoon ;
Easy to peel, reduce the time of pulling out the outer sheath, improve the construction efficiency ;
It has the advantages of corrosion resistance, UV protection and environmental protection

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm	-	-	≤3.5dB/km	≤3.5dB/km
	@1300nm	-	-	≤1.5dB/km	≤1.5dB/km
	@1310nm	≤0.45dB/km	≤0.45dB/km	-	-
	@1550nm	≤0.30dB/km	≤0.30dB/km	-	-
	@850	-	-	≥500MHZ·km	≥200MHZ·km
Bandwidth （Class A）	@1300	-	-	≥1000MHZ·km	≥600MHZ·km
Numerical aperture	-	-	-	0.200±0.015NA	0.275±0.015NA
Cable Cutoff Wavelength	-	≤1260nm	≤1480nm	-

Technical Characteristics

ber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
1-12 core	4.5*8.5	46	400/1200	300/1000	30D/15D
