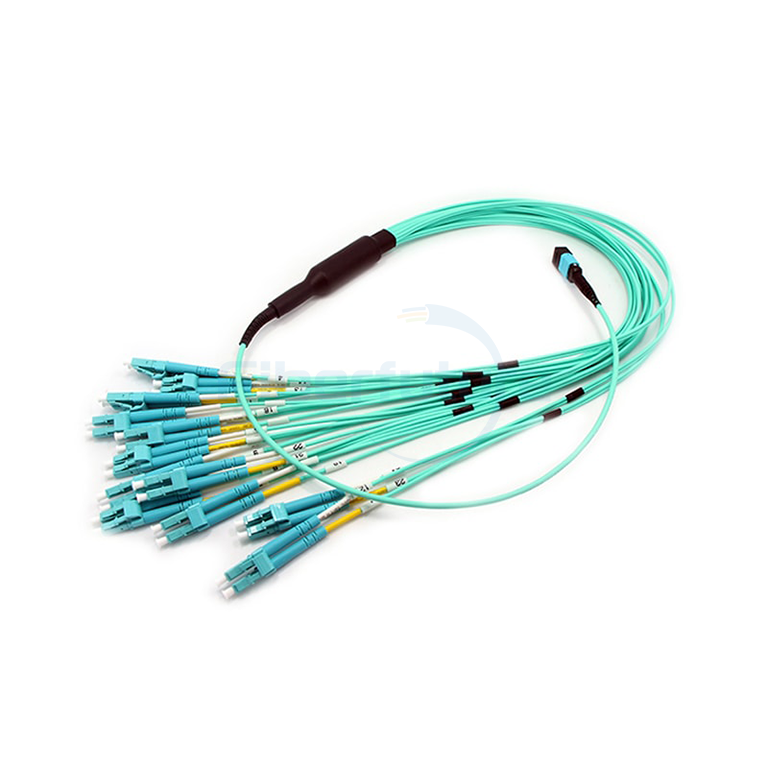

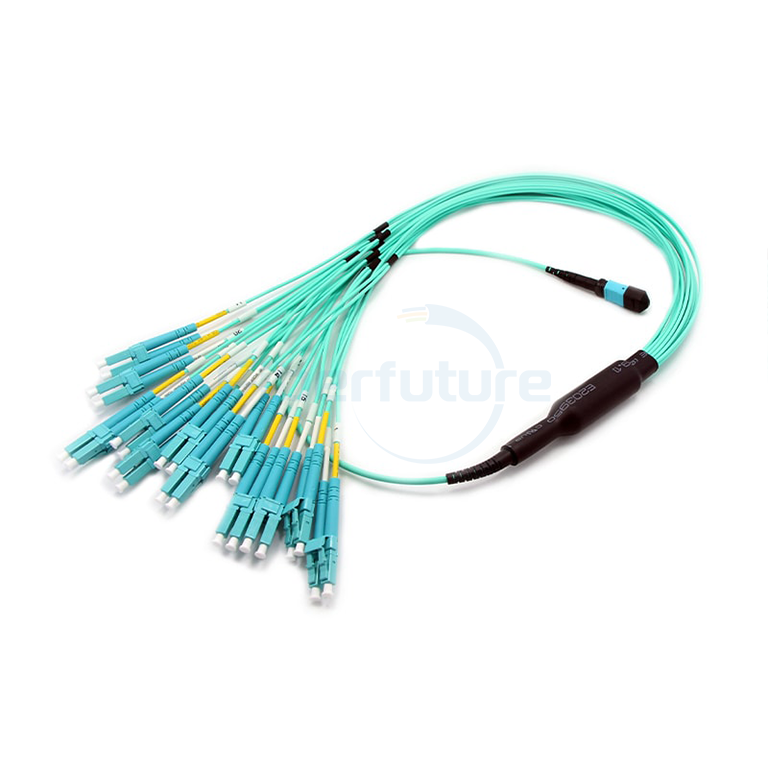

FIBERFUTURE 24-core MTP female to 12 LC duplex (12x LC uniboot; 24 LC simplex) staggered harness cable assembly is optimized for 40G QSFP+ to 10G SFP+ direct connections and high-density data center applications. Featuring staggered lengths, it simplifies high-density fiber patching, reducing cable management issues. Suitable for 10/40/100G environments, it connects (12) SFP+ ports to an MTP adapter panel.
| Connector Type |
|---|
| Spec items. | Single Mode (APC 8-degree Polished) | Multimode (PC Flat Polish) |
| Insertion Loss (MPO)
(IEC 61300-3-34) |
Standard Loss: ≤0.75dB (max), ≤0.50dB (Typical)
Super Low Loss: ≤0.35dB (max), ≤0.20dB (Typical) |
Standard Loss：≤0.6dB (max), ≤0.50dB (Typical)
Super Low Loss：≤0.35dB (max) , ≤0.20dB (Typical) |
| Insertion Loss (LC/SC/FC/ST)
(IEC 61300-3-6) |
≤0.3dB | ≤0.3dB |
| Return Loss (MPO) | ≥60dB（8-degree Polishing） | ≥25dB |
| Return Loss (LC/SC/FC/ST) | APC≥60dB; UPC≥50dB | ≥35dB |
| Durability | <0.3dB Typical Change, 200 Matings | |
| Interchangeability | ≤0.2dB | |
| Tensile Strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
| Connector | Reference | Housing Details |
| MTP Single Mode | IEC 61754-7 | SM APC: Green Connectors+Black Boot (Standard Loss MTP)
SM APC: Yellow Connectors+Black Boot (Elite MTP) |
| MTP Multimode | IEC 61754-7 | OM3 & OM4 PC: Aqua Connectors+Black Boot (Standard Loss & Elite MTP) |
IEC Straight IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5 (FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3
| Fiber Count |
OD (mm) |
Minimum Allowable Tensile Strength (N) |
Minimum Allowable
Crush Load (N/100mm) |
Minimum Bending Radius
(MM) |
| 24 | 3.0±0.15 | Short-term: 180
Long-term: 90 |
Short-term: 500
Long-term: 150 |
Static: 10D
Dynamic: 20D |
